Vacuum Drying Oven

Product Categories
Prosperity Biotech (Shandong) Co., Ltd.
Contact Now

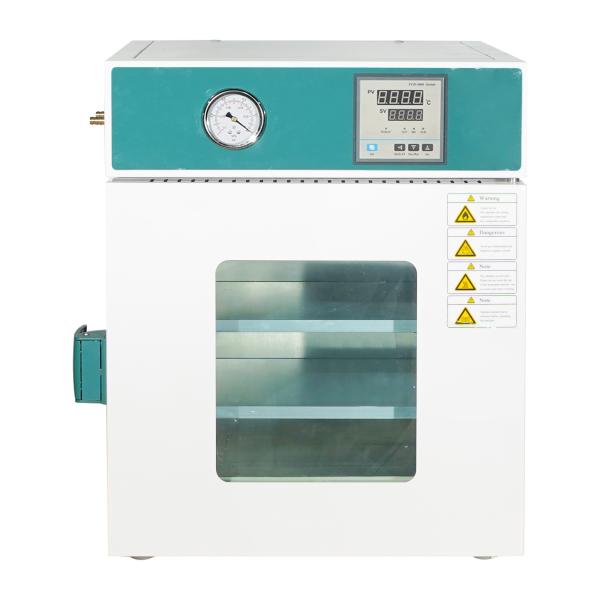

Vacuum Drying Oven

  • 1
  • 2
  • 3

Brand Name : BIOSTELLAR

Certification : CE ISO

Place of Origin : CHINA

MOQ : 1

Payment Terms : L/C, T/T, Western Union

Delivery Time : 5-8 Work days

Packaging Details : Carton case;Wooden case

Contact Now

Product Description:

1. 4-sides Heating method, Temperature conduction by shelves, more efficiency.

2. With inflatable port, once-forming thermostability Silica gel Sealant strip, with good tightness

3. Double Observation glass window, inner is explosion - proof glass, outside is resin protection plate, more safety.

4. Fastening handle, convenient for opening and closing.

Model DZ-1AⅡ DZ-2AⅡ DZ-3AⅡ
DZ-1BCⅡ DZ-2BCⅡ DZ-3BCⅡ
Heating mode Four walls heat conduction and decompression
Function Temp.
Range		 RT+10-250℃
Useful vacuum
degree Range		 <133Pa
Temp.
Resolution Ratio		 0.1℃
Temp. motion ±1℃
Heating-up
time		 80min 100min 120min
Structure Inner Chamber BC model: High quality hairline stainless steel sheet;
A model: Anticorrosion treatment of high strength
galvanized sheet
Outer Shell Cold rolling steel electrostatic spraying exterior
Insulation layer Aluminum silicate fiber
Heater Stainless steel electric heating tube
Observation
window		 Bullet proof glass, acrylic exterior protection
Vacuum meter Pointer type, accuracy class 2.5
Nozzle diameter 10mm
Power rating 0.8kW 1.4kW 2.0kW
Controller Temp. control
mode		 Two temperature section PID intelligent
Temp. setting
mode		 Touch button setting
Temp. display
mode		 Measuring temperature: display on the four digital tubes
upper row ; setting temperature: display on the
lower row
Timer 0-9999min(with timing wait function)
Operation function Fixed temperature operation, timing function, auto stop
Additional function Sensor deviation correction, temperature overshoot
self-tuning, internal parameter locking,
power-off parameter memory
Sensor pt100
Safety device Over temperature sound-light alarm
Specification Inner Chamber
size(W*L*H)
(mm)		 300*300*270 415*370*340 450*450*450
Exterior size
(W*L*H)(mm)		 480*480*606 560*540*680 640*590*780
Packing size
(W*L*H)(mm)		 590*550*750 704*620*814 739*700*889
Volume 24L 52L 91L
Number of shelf 2
Load per rack 15kg
Shelf space 100mm 140mm 185mm
50/60HZ)
Current rating		 AC220V/3.6A AC220V/6.3A AC220V/9.1A
NW/GW (kg) 42/52 67/92 82/105
Accessory Shelf 2
Shelf frame 4
optional accessories Silica gel connecting pipe, vacuum pump
